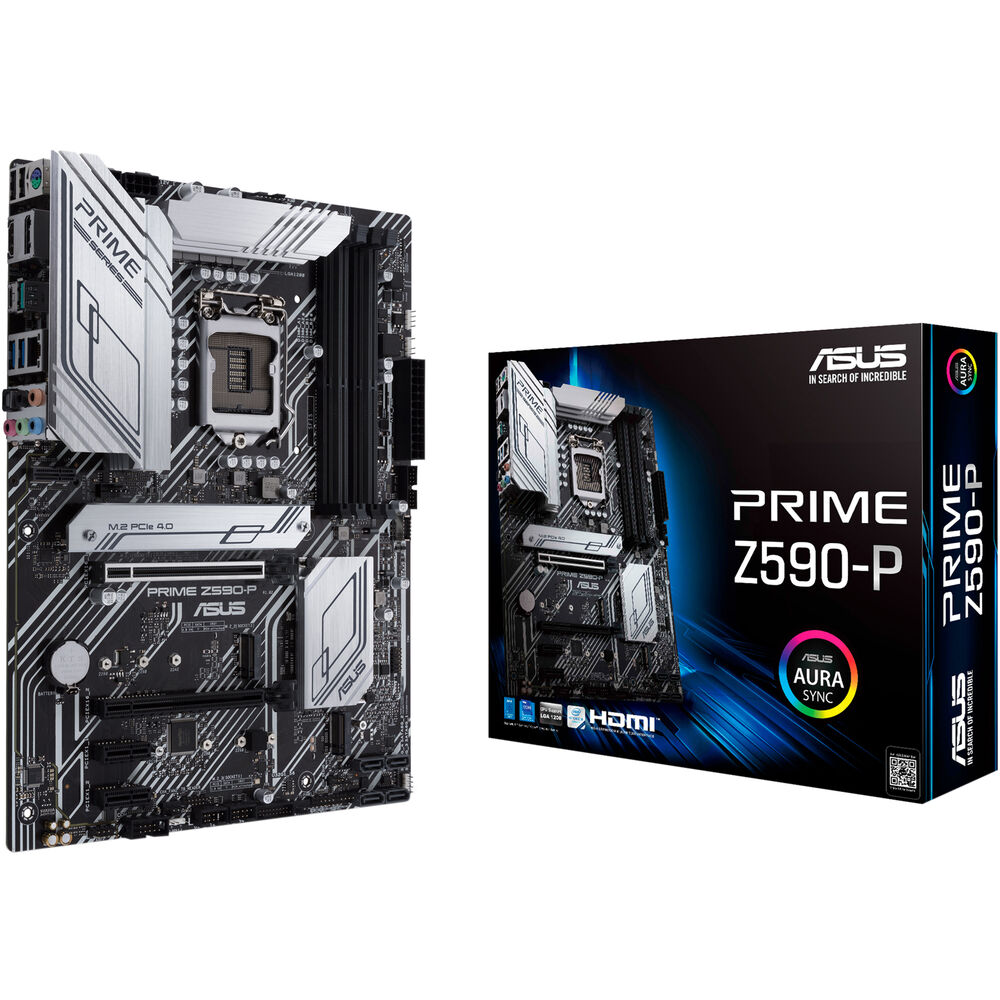

ASUS Prime Z590-P LGA 1200 ATX Motherboard

In Stock (Same day Delivery)

MFR #PRIME Z590-P

CPU

Chipset	Intel Z590
CPU Socket	LGA 1200

Back Panel I/O

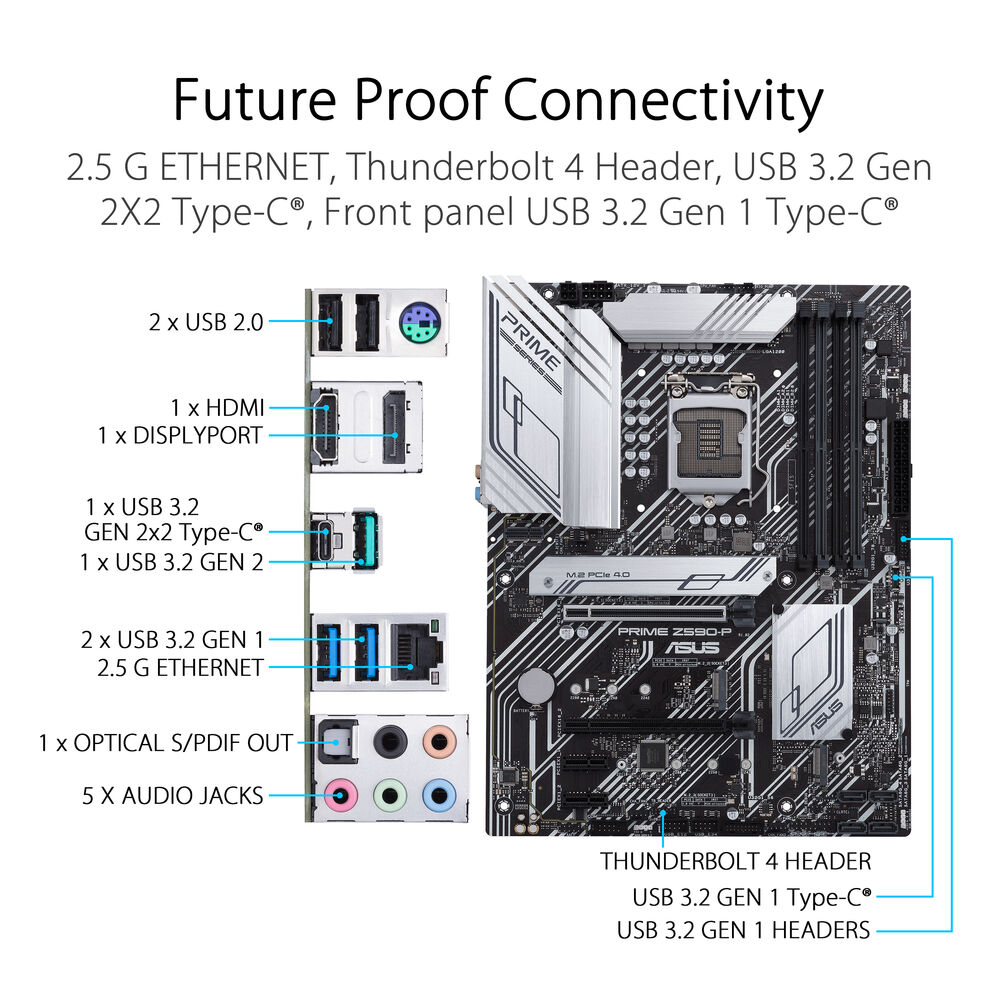

USB	1 x USB 3.2 Gen 2x2 Type-C 1 x USB 3.1 / USB 3.2 Gen 2 Type-A 2 x USB 3.1 / USB 3.2 Gen 1 Type-A 2 x USB 2.0 Type-A
Thunderbolt	None
Display	1 x DisplayPort 1.4 1 x HDMI 1.4
Audio	5 x 3.5 mm 1 x S/PDIF
Ethernet / Controller	1 x Realtek 2.5Gigabit
PS/2	1 x Combo

Memory

Storage Expansion

SATA	4 x SATA III

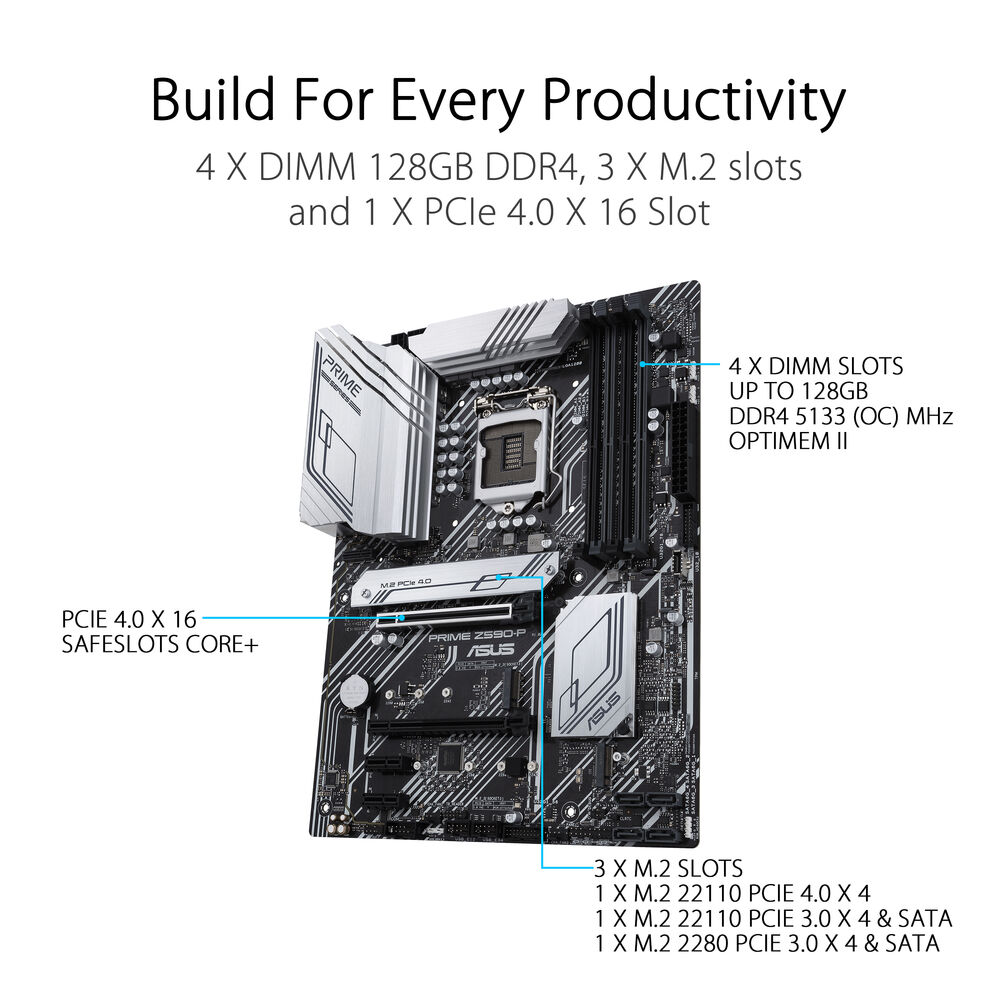

M.2	1 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4) 1 x M Key 2242, 2260, 2280 (PCIe 3.0 x4, SATA III) 1 x M Key 2242, 2260, 2280, 22110 (PCIe 3.0 x4)
U.2	None
Optane Memory Support	Yes

Internal I/O

Expansion Slots	1 x PCIe 4.0 x16 (x16 mode) 1 x PCIe 3.0 x16 (x4 mode) 2 x PCIe 3.0 x1
USB	1 x USB 3.2 Gen 2x2 Header (Supports 1 USB Type-C Port) 2 x USB 3.1 / USB 3.2 Gen 1 Header (Supports 4 USB Type-A Port) 2 x USB 2.0 Header (Supports 4 USB Type-A Port)

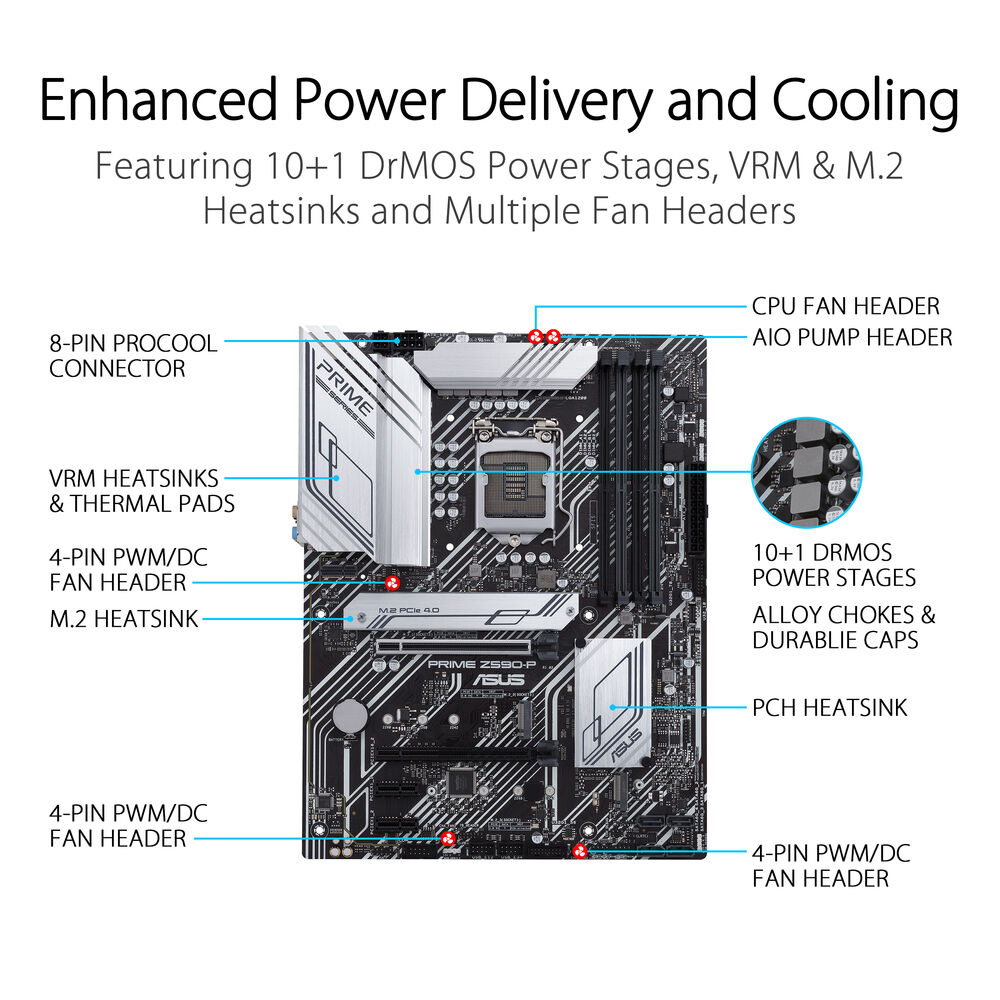

Air Cooling	1 x 4-Pin CPU 3 x 4-Pin System
Liquid Cooling	1 x 4-Pin Pump
Power Connectors	1 x 24-Pin Mainboard 1 x 8-Pin ATX 1 x 4-Pin ATX
Security	TPM Module

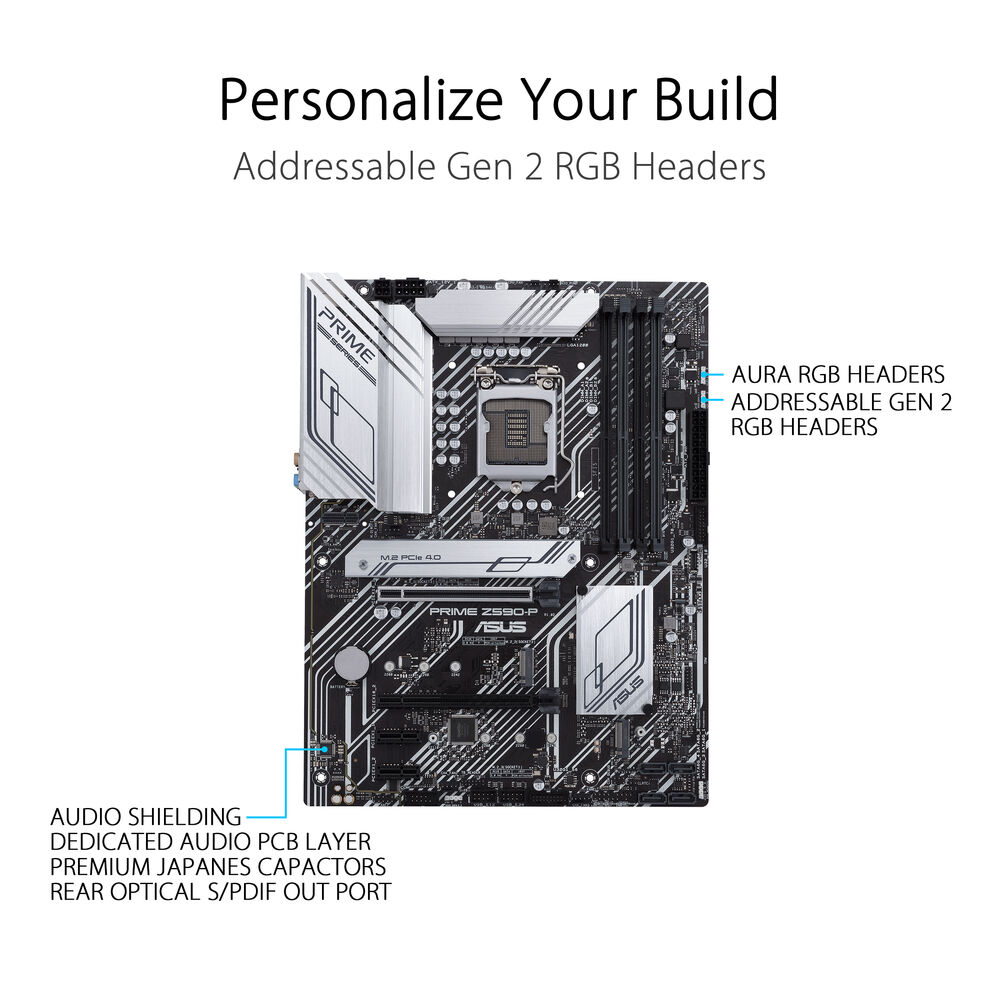

LED Header	4 x RGB
Audio	1 x Speaker
Diagnostics	Clear CMOS
Add-On	1 x Thunderbolt Card Header
Legacy	1 x Serial

BIOS

ROM

192 Mb

Front Panel I/O

I/O Connection Headers

USB 3.1 / USB 3.2 Gen 1

Audio

Audio Codec

Realtek ALC897 (7.1-Channel)

Software

Supported Operating Systems

Windows 10 (64-Bit)

Physical

Form Factor	ATX
Dimensions	9.2 x 12.0" / 23.4 x 30.5 cm

Packaging Info

Package Weight	3.225 lb
Box Dimensions (LxWxH)	13.3 x 10.7 x 2.7"
