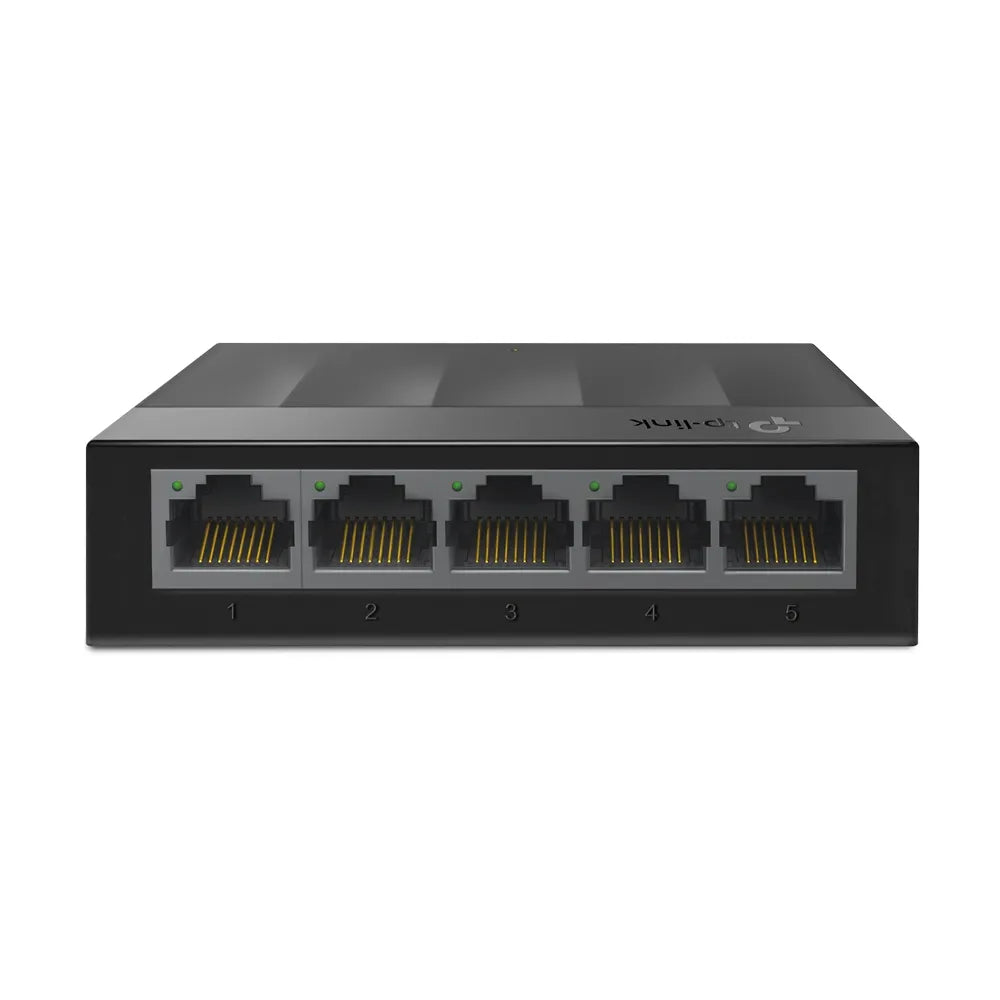

TPLINK LS1005G l 5-PORT DESKTOP SWITCH
01374SPECIFICATION
| Features / filters | |
| LAN standard | Gigabit Ethernet 10/100/1000 Mb/s |
| Number of LAN ports | 5x 10/100/1000BaseTX (RJ45) |
| 10G support | No |
| Auto MDI/MDI-X | Yes |
| Auto-negotiation | Yes |
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Certification | CE, FCC, RoHS |
| DC input voltage | 5 |
| Depth | 72 |
| Flow control support | Yes |
| Forwarding rate | 7.4 |
| Heat dissipation | 12.617 |
| Height | 24 |
| Housing material | Plastic |
| Input current | 0.6 |
| International Protection (IP) code | IP20, IP40 |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| LED indicators | Yes |
| MAC address table | 2000 |
| Networking standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 |
| Operating temperature (T-T) | 0 - 40 |
| Package depth | 91 |
| Package height | 84 |
| Package type | Box |
| Package width | 94 |
| Packet buffer memory | 1.5 |
| Power consumption (max) | 3.7 |
| Power over Ethernet (PoE) | No |
| Power supply included | Yes |
| Product colour | Black |
| Quick start guide | Yes |
| Rack mounting | No |
| Storage relative humidity (H-H) | 5 - 90 |
| Storage temperature (T-T) | -40 - 70 |
| Store-and-forward | Yes |
| Switch type | Unmanaged |
| Switching capacity | 10 |
| Switching layer | 2 |
| Type of case | Desktop, Plastic, |
| Wall mountable | Yes |
| Width | 90 |
| Technical data: | |
| Standards and protocols | IEEE 802.3i/802.3u/ 802.3ab/802.3x |
| Ports | 5 Ports 10/100/1000Mbps, Autonegotiation, Auto-MDI/MDIX |
| Fanless | Yes |
| Power supply | External power supply (output: 5VDC / 0.6A) |
| Dimensions (H x W x D) | 90 × 72 × 23 mm (3.5 × 2.8 × 0.9 inches) |
| Max. power consumption | 3,7W |
| Amount of heat generated | 12,617 BTU/h |
| Performance | |
| Switching capacity | 10 Gbps |
| Packet forwarding rate | 7.4 Mp/s |
| MAC Address Table | 2K |
| Packet buffer | 1.5 Mb |
| Jumbo frames | 16 KB |
| Software functions | |
| Advanced features | Green technology 802.3X flow control Back Pressure |
| Transmission method | Store and Forward |
